Evaluation

CropCatcher ships a small, real-world evaluation dataset and a benchmarking module (cropcatcher.evaluation) that compares SIFT, AKAZE and ORB on actual IIIF manifests (not synthetic images).

Dataset

tests/fixtures/mandragore/ is built from the BnF's dataset Mandragore — échantillon segmenté 2019 : 631 manually segmented illuminations (bounding box + legend) across 8 real Gallica manuscripts, released under the Gallica reuse terms. The full CSV (Segments_Enluminures.csv) is kept as-is for future, larger evaluation runs.

dataset.json packages a hand-picked subset of 10 cases from 5 manuscripts. Each case has a query crop cached locally (the one asset that can't be regenerated from a manifest) and the IIIF Image API service id of its true source canvas, resolved live from Gallica at evaluation time:

manuscript	legend	canvas
Français 1291 — Gaston Phébus, Livre de la chasse	Gaston Phébus et veneurs	f. 2v
Français 1291 — Gaston Phébus, Livre de la chasse	Faune : cerf	f. 5v
Arabe 274 — Barlaam et Josaphat	Saints Barlaam et Josaphat	f. 1v
Arabe 274 — Barlaam et Josaphat	Saint Josaphat dans son palais	f. 11v
Grec 2736 — Oppien, Cynégétiques	Chasse diurne	f. 4v
Grec 2736 — Oppien, Cynégétiques	Chevaux combattant des bêtes sauvages	f. 9
Français 225 — Pétrarque, De remediis utriusque fortunae	Allégorie : Roue de la Fortune	f. 1
Français 225 — Pétrarque, De remediis utriusque fortunae	Allégorie : Raison et l'homme	f. 8
Latin 757 — Bible historiale	Création : lumière	f. 24
Latin 757 — Bible historiale	Armes de Julien Regin	f. 4

Method

cropcatcher.evaluation.evaluate_method builds the full 10×10 query×candidate similarity matrix (every crop matched against every candidate canvas, not only its own true source) from which it derives:

• Recall@1 / Recall@3: does the true source canvas rank first / in the top 3 by score?
• Precision / recall / F1: treating inliers >= min_inliers (the same threshold Matcher uses to gate a bbox) as a binary match/no-match classifier over all 100 pairs.
• Mean inliers / inlier ratio on the 10 true pairs.

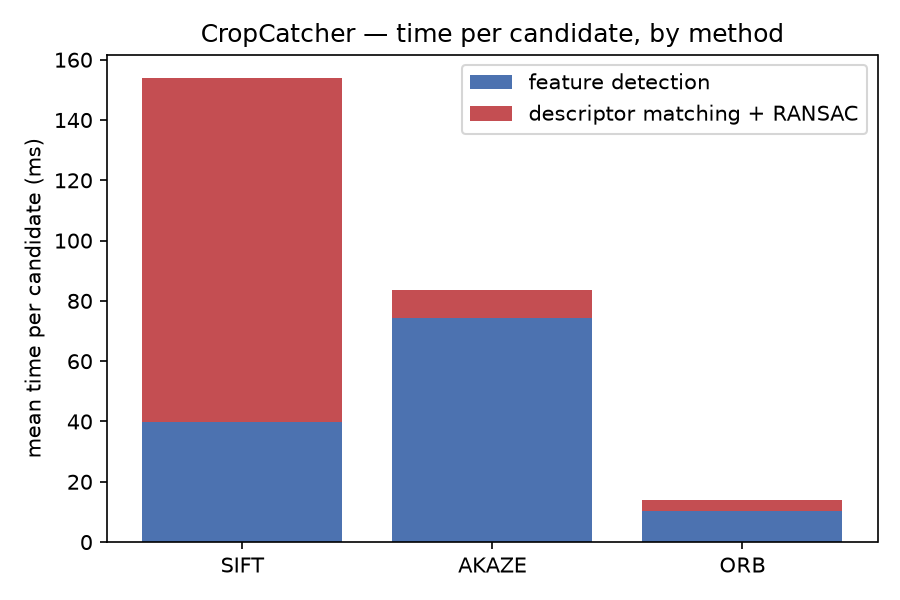

• Processing time, split into feature detection and descriptor matching + RANSAC.

cropcatcher.evaluation.evaluate_transforms complements the retrieval benchmark with a robustness study. A simple crop-to-source comparison is too easy, so each query crop is degraded with realistic image transformations such as perspective changes, resizing and recompression, then matched only against its true source canvas.

The goal is not to rank a corpus, but to measure how score and inlier counts degrade under realistic distortions.

transform	what it simulates
rotate_15 / rotate_45	the crop was photographed or scanned at an angle
scale_50 / scale_25	a lower-resolution reproduction of the same crop
jpeg_q10	heavy JPEG compression artifacts
perspective_heavy	a page photographed off-axis (non-affine distortion)

Reproduce all of it with:

uv sync --group notebook   # pulls in matplotlib
uv run python scripts/run_evaluation.py

Results

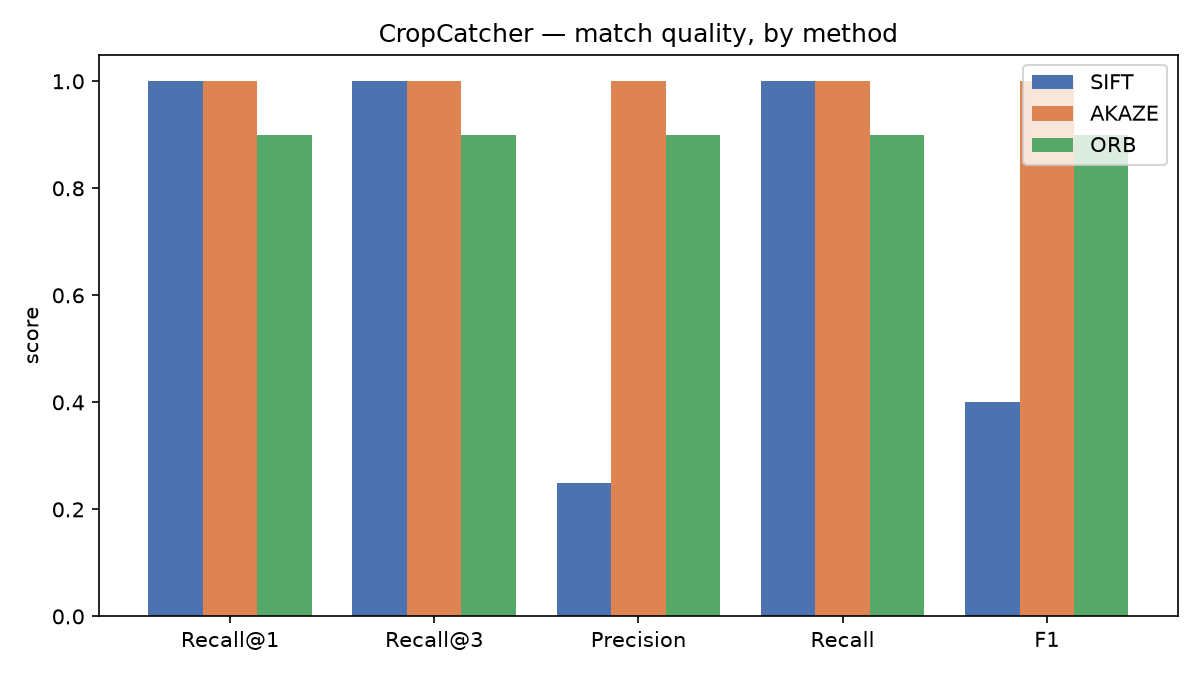

method	Recall@1	Recall@3	Precision	Recall	F1	mean inliers	inlier ratio	ms/candidate
SIFT	1.00	1.00	0.24	1.00	0.39	1424.7	0.94	154.0
AKAZE	1.00	1.00	1.00	1.00	1.00	817.0	0.96	83.5
ORB	0.90	0.90	0.90	0.90	0.90	553.5	0.84	13.9

Reading the results

• SIFT and AKAZE achieve perfect Recall@1/@3 on this sample, with true matches clearly separated from false ones by score.
• SIFT's low precision comes from the hard min_inliers threshold, not from ranking quality. Some visually similar pages occasionally pass the threshold, while true matches still score much higher. A higher min_inliers or score threshold improves binary decisions.

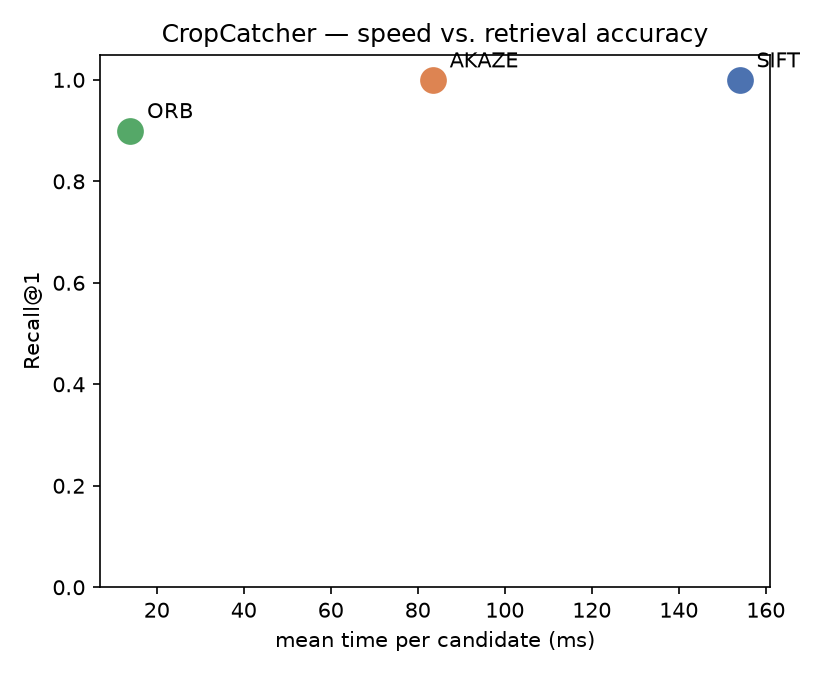

• AKAZE matches SIFT's retrieval accuracy while being about 46% faster per candidate and remains more precise with the default threshold.
• ORB is about 11x faster than SIFT, but recall drops to 0.90 because small or low-contrast crops may not produce enough consistent features.

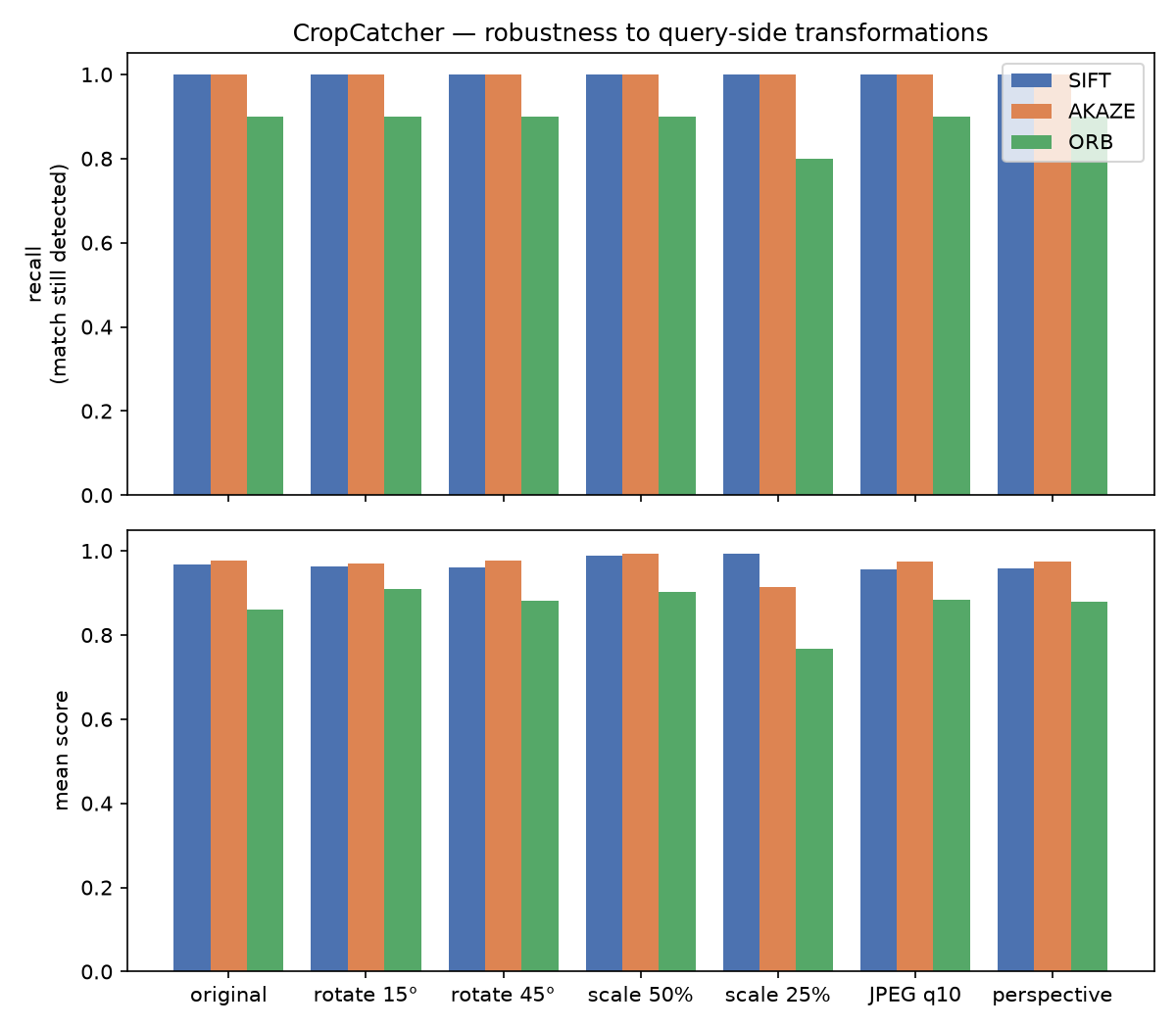

Robustness to transformations

• SIFT remains fully robust across all tested transformations, including 45° rotation, 4x downscaling and heavy JPEG compression.
• AKAZE also keeps Recall = 1.0, but aggressive downscaling significantly reduces the number of inliers, even when matches still pass the threshold.
• ORB is the most fragile, with lower recall even at full resolution and further degradation under strong downscaling.

Examples: a distorted crop among good and bad candidates

Two real examples illustrate how SIFT behaves under distortion:

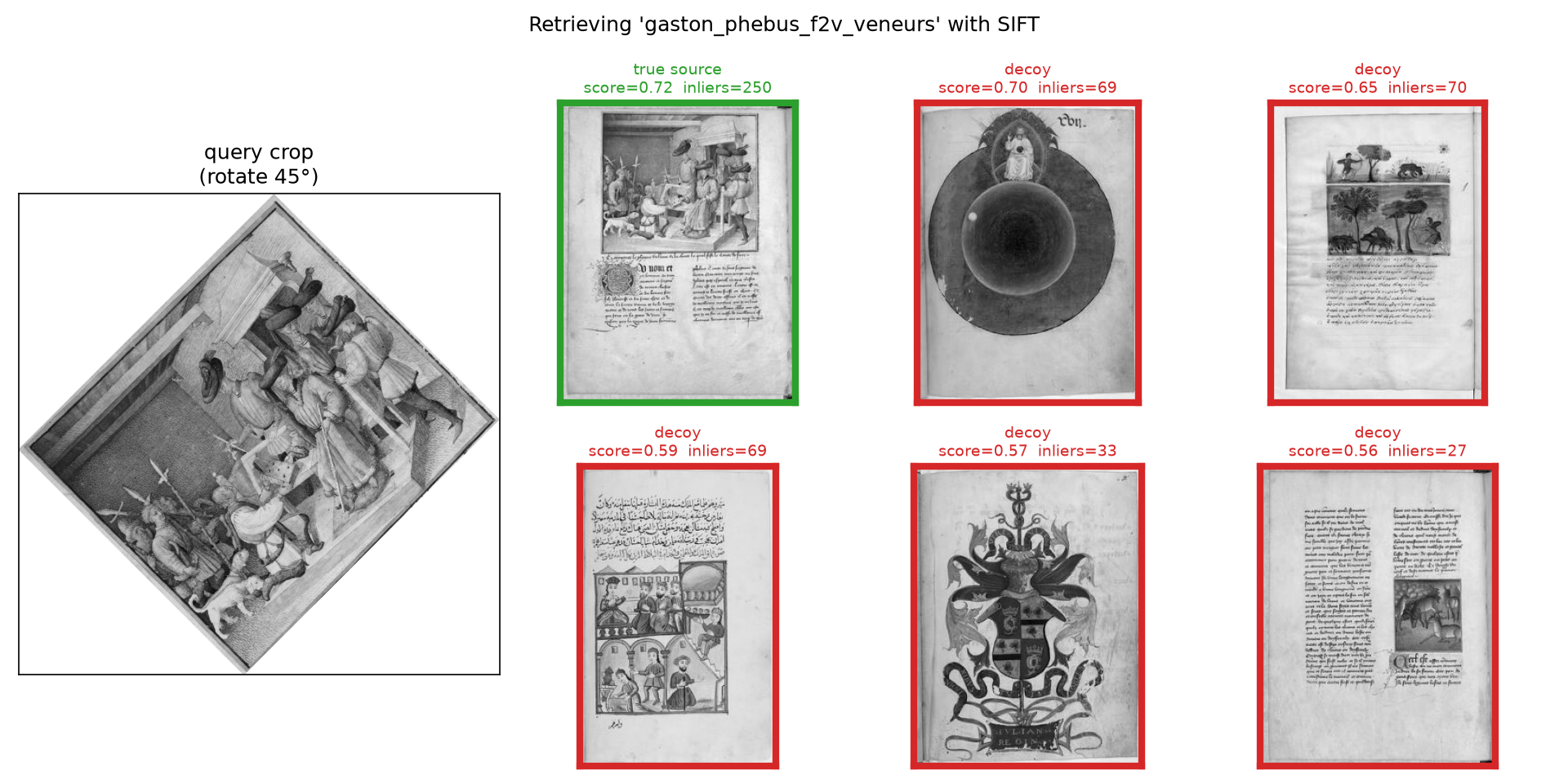

• 45° rotation: the true source still ranks first with a score of 0.72, ahead of all decoys.

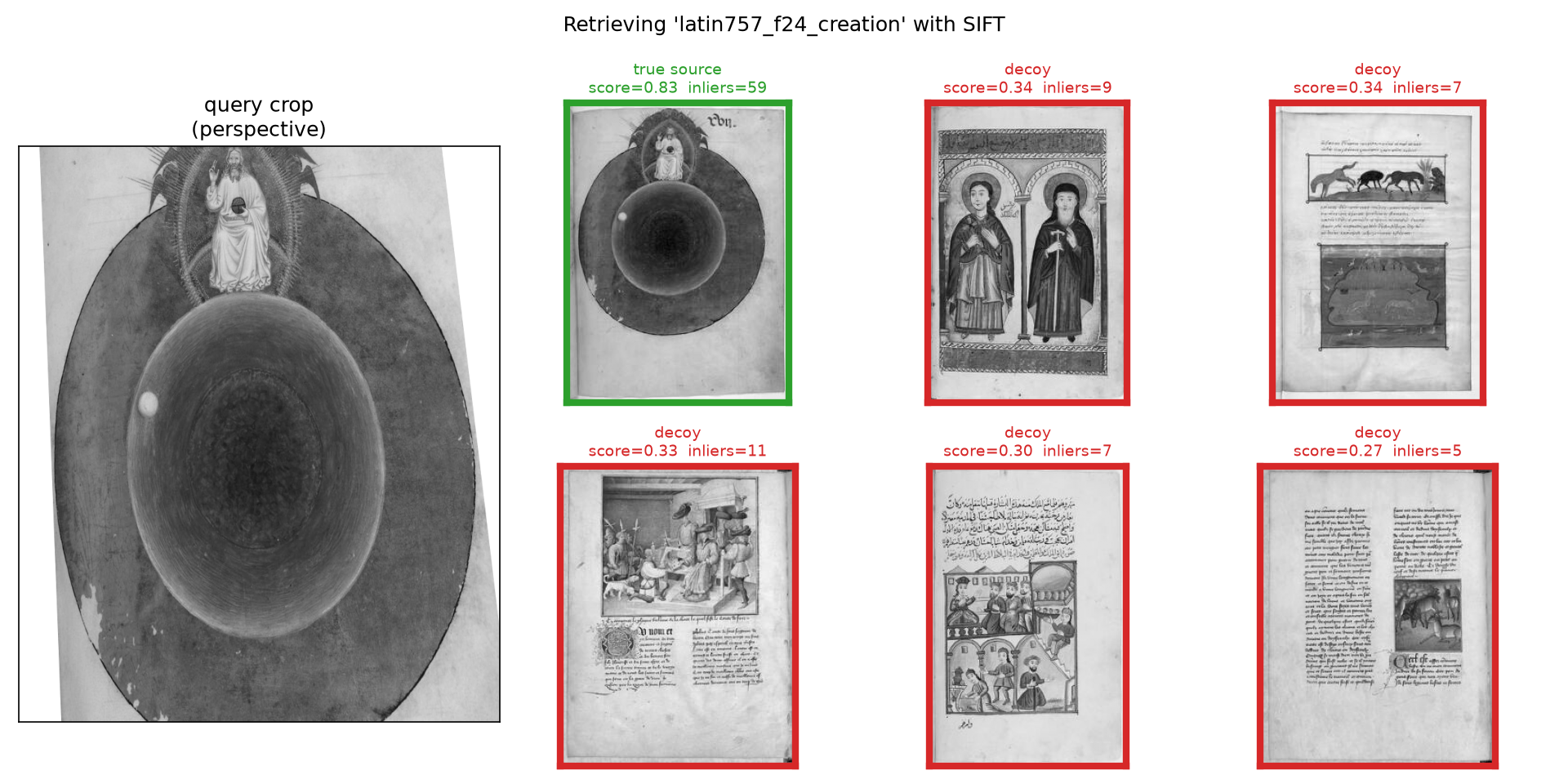

• Perspective distortion on a low-texture crop: This crop ("Création : lumière") is one of the harder cases in the dataset ( mostly flat gold and blue fields with limited texture). The true source remains first (0.83 vs. 0.34 for the closest decoy), but the smaller margin shows that low-texture regions are more sensitive to parameter tuning.

This 10-case dataset is an end-to-end validation sample, not a statistically robust benchmark. Expanding tests/fixtures/mandragore/dataset.json with more IIIF examples will make the comparison more representative.
